M2
$109.99
MonsGeek MG M2 QMK Mechanical Keyboard Kit
M2 is a 1800 compact QMK and south-facing aluminum barebone keyboard.
1800 compact layout are efficient, and ideal for users who want to maintain the full-size of the keyboard while save desk space.
Note: M2 requires 2 x 1.5u function keys (ALT/FN) at R1. It is compatible with Akko MDA / SAL profile keycaps. Given M2 intl’ version is QMK programmable, users can literally program any key; hence, any keycap sets with alternate 1.5u R1 keys are theoretically compatible with M2 such as Marrs Green, World Tour Tokyo Cherry Profile etc.
Disclaimer: we do NOT sell domestic non-QMK version on global store. All M series wired models you see are international version exclusive.
Aluminum Case
Customizable RGB
Gasket Mount
N-Key Rollover
5-Pin Hot-Swappable
Mac & Windows & Linux
M2
1800 compact 98-key aluminum DIY Kit.
1800 compact layout on MonsGeek M2 offers essential function keys and the number pad from full-size while minimizing desk usage.
M Series QC Guide
Learn about what to expect with the order. MonsGeek provides its standard on how we manage aluminum finishes during QC process. Click icon on the left to download.
Stabilizers
PCB Mount/Screw-in stabilizers tend to vibrate less. M2 uses Akko transparent white stabilizers (un-assembled) with nylon housing in case users want to lubricate.
Gasket Mounted Style
With the Gasket-mounted structure, the isolation between the plate and the case gives a unique sound and feel compared to other mounting styles.
South-facing PCB
The south-facing PCB of M2 1800 mechanical keyboard barebone avoids causing interference with Cherry profile keycaps, offering more compatibility and flexibility.

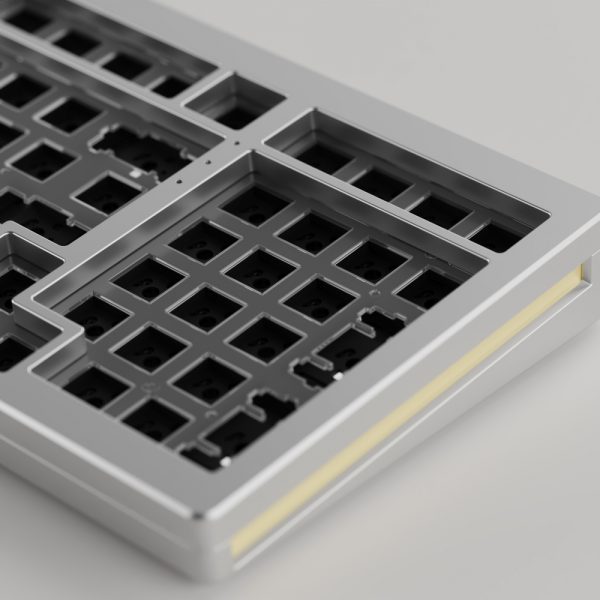

New Silver Accent
While M2 silver comes with golden accent, MonsGeek has picked the new silver accent on other models. MonsGeek will start to offer standalone accent for sale to better personalize each unit based on user preference.
N-Key Rollover
The N-Key Rollover technology allows all keys to work simultaneously and ensures every keystroke is recorded and prevents ghosting.
Engraved Back Design
M2 Aluminum Kit QMK version has adopted the new engraved back design with a re-sized sticker for aesthetics purposes.
QMK / VIA
MonsGeek M2 custom aluminum kit supports VIA for cross-platform (Linux/Mac/Windows) advanced keyboard configuration.
QMK is currently undergoing certification. Users who wish to implement it before the official pull request can download the source code.
This feature is exclusively for the international version of M2.
Need More Foam?
Monsgeek has developed its own budget custom material that performs equally as well as poron. Meanwhile, MonsGeek M2 custom kit comes with an additional sponage case foam to reduce case ping.
*Disclaimer: Using thicker foam may reduce flex, whether to include it or not is down to your personal preference.
PET Insulation Layer
A PET insulation layer has been added to the bottom case in order to prevent any short circuit issues. It’s rare for these issues to occur but we want to add extra protection.
Accessories to Play With
Extra teflon pads included for users who wish to perform a force break mod.
Extra tape for users who wish to perform a tape mod.
MonsGeek includes a default 3mm custom-made foam for a balanced feeling. Disclaimer: the foam will affect the overall sound profile and flex.
OPTIONAL PLATES TO CONSIDER
For users who want a softer and more flexible typing experience.
POM>>>
For users who want a balanced feeling between sound and flex.
FR4>>>
Demonstration
| Model | M2 (international QMK ver) |
| Mount | Gasket |
| Case Material | Aluminum CNC |
| Color | Black/Silver/Purple |
| Compatible System | Mac & Windows & Linux |
| Connection | USB-C Wired |
| LED | RGB |
| Hotswap | Y |
| PCB Thickness | 1.6mm / 1.2mm(New Batch) |
| Plate | PC |
| Plate Foam | Y (MonsGeek Custom Material) |
| Switch Pad | IXPE |
| Case Foam | Y (MonsGeek Custom Material 3mm) |
| Drying Agent | Y |
| Stabilizer | Akko Screw-in Stabilizer (pre-clipped, but not pre-installed, 5*2u+1*6.25u) |
| Force Break Mod Stripes | Teflon Pads (not pre-installed) |
| Software | VIA/QMK |
| Cable | Coiled Cable |
| Size | 39.1cm*14.6cm*3.27cm |
| Barebone Weight | around 2100g |
